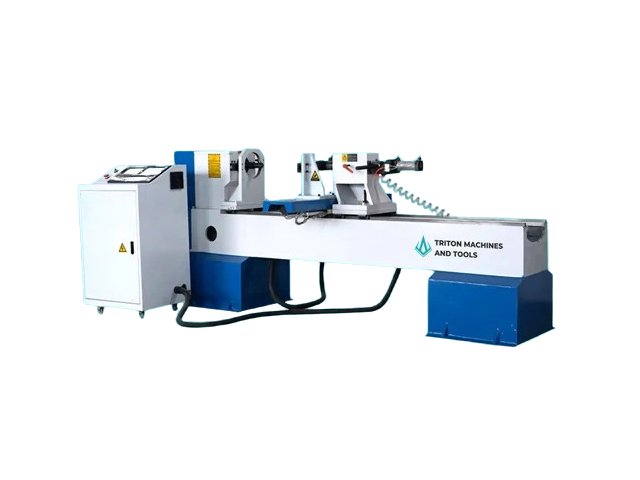

Automatic Wood Turning Machine

AUTOMATIC WOOD TURNING MACHINE

Automatic Wood Turning Machine

Automatic Wood Turning Machine with Spindle

AUTOMATIC WOOD TURNING MACHINE

Processing length - 30 -1500mm
Processing diameter - 20-230mm
Quantity of cutter - 2 nos
Machine dimension - 2.88*1.2*1.5m
Gross weight - 900 KG
Feeding speed - 40mm/sec
Spindle motor power - 5.5 KW
Operating system - DSP controller
Yako / Leadshine Stepper Drive & Motor

AUTOMATIC WOOD TURNING MACHINE WITH SPINDLE

Processing length - 30 -1500mm
Processing diameter - 20-230mm
Quantity of cutter - 2 nos
Machine dimension - 2.88*1.2*1.5m
Gross weight - 900 KG
Feeding speed - 40mm/sec
Main Servo motor power - 5.5 KW
Operating system - DSP controller
3.5KW Air Cooled Spindle, 18,000rpm
Servo Drive For Main Motor
3.7KW Folin VFD
Yako / Leadshine Stepper Drive & Motor
